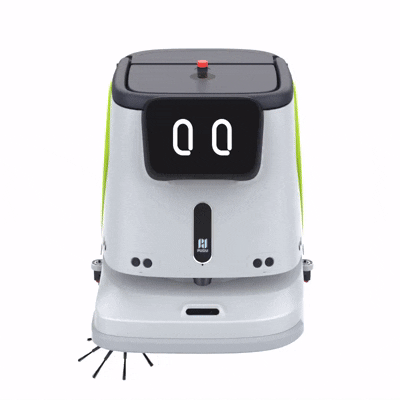

Pudu CC1

Smarter cleaning
powered by
adaptive AI

The CC1  is Pudu’s enhanced 4-in-1 commercial cleaning robot, combining sweeping, scrubbing, vacuuming, and mopping with advanced AI that detects stains, adjusts cleaning modes and monitors its own components.

AI Spot Scrubbing

Smart AI technology identifies dirty spots and scrubs them instantly, delivering spotless results with efficiency.

AI Real-Time Cleaning Performance Detection

Our AI system monitors cleaning in real time, ensuring every task is done efficiently and meets top hygiene standards.

AI Cleaning Intensity Control

Our AI automatically adjusts cleaning power based on surface type and dirt level, ensuring optimal results every time.

AI Cleaning Intensity Control

Smart AI technology that detects surface conditions and adjusts cleaning intensity for maximum efficiency and care.

4-in-1 Versatile Cleaning

Experience powerful 4-in-1 cleaning that sweeps, vacuums, mops, and sanitizes — all in one smart device for a spotless home.

VSLAM+ Positioning

VSLAM+ Positioning ensures precise navigation and mapping, allowing your cleaner to move efficiently and cover every corner with accuracy.

AI-driven Perception

AI-driven Perception enables smart detection of surroundings, allowing the device to recognize obstacles, adapt in real time, and deliver safer, more efficient cleaning.

IEC 63327 Certification

IEC 63327 Certification ensures the product meets international standards for robotic cleaning performance, safety, and reliability, guaranteeing trusted quality and professional-grade results.

Product features

Versatile Cleaning

Four-in-one cleaning robot (scrubbing, sweeping, vacuuming, dust mopping)

Suit Various Floor Types

Suitable for both hard ﬂoors and soft carpets

Dynamic Space Perception

Ideal for environments that frequently change, with the ability to perform real-time route planning and intelligent touch-ups based on the current surroundings.

Auto Power Charging & Water Reﬁll and Discharge

No manual intervention worry-free and labor-saving

Four-in-1 Versatile Cleaning

Sweeping, scrubbing, vacuuming, and mopping functions in one. Meet all your cleaning needs with one machine.

Mopping

Scrubbing

Sweeping

Vacuuming

Narrow aisle

Passing width 70cm
Turning width 88cm

Low space

Min height 70cm

Cutting edge

0 to the wall

CC1 : Cross-layer cleaning with IOT system capability

Robot

Docking station

Turnstile

Calling elevator

Accessories

Empower robots with diversified accessories for more possibilities

Carpet Vacuuming Assembly

Product Accessories

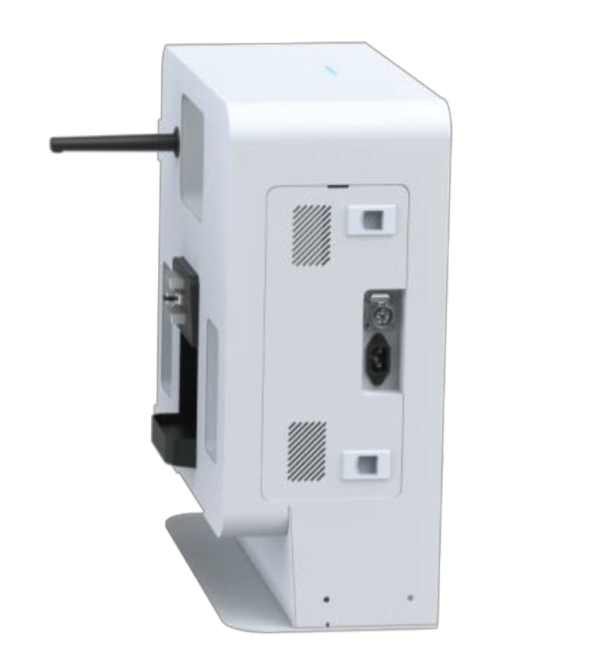

Charging Station

Product Accessories

Elevator Control Module

IOT Accessories

PUDU Mobile Water Station

Product Accessories

Product Overview

Size

629（L）* 552（W）*695（H）mm

Weight

75Kg（with Battery）

Battery

24V 50Ah

Charging Time

< 3.5h

Duration time

5h（Scrubbing）；5h（ Sweeping）；4h(Carpet vacuuming)；9h（Mopping）

Protection

IPX4

Speed

1.2m/s

Pass ability

70cm

Max climb angle

8°

Max obstacle height

20mm

Max gap width

35mm

Running noise

< 70dB

Cleaning path

500mm（with brush）

Cleaning efficiency

700-1000㎡/h

Tank capacity

Clean water tank 15L
Sewage tank 15L

Dust box capacity

2.5L

Screen

10.1Inch touch screen

Operating mode

Manual, Automatic

Automatic recharge

Support(Charging pile required)

Self-drainage

Support(station required)

Temperature

1 ~ 40℃

Interaction

Supports announcements and voice broadcasts

Sensor

Lidar, ultrasonic sensor, depth camera, RGB camera, infrared camera, electronic anti-collision strip, magnetic induction sensor, etc.

Applicable surface

Hard floor: marble, tile, terrazzo, PCV, epoxy resin, etc.
Soft floor: short wool carpet

PUDU CC1
TRANSFORMING INDUSTRIES

Smart automation tailored for every business sector.

Food & Beverage

High-performance cleaning: scrubbing, sweeping, vacuuming, and squeegeeing to tackle every type of dirt.

Retail

Ensure a clean, safe and comfortable environment to protect health, maintain product quality, and boost work efficiency.

Hospitality

CC1 handles daily cleaning, dry dust mopping & cross-floor vacuuming to keep hotels spotless and welcoming for guests.

Health Care

CC1’s smart safety features prevent accidents and minimize cross-infection, ensuring a safe, hygienic medical environment.

Education

Fully Automated, Comprehensive Cleaning: 24/7 automation with mopping, dust pushing, sweeping, and vacuuming. Zero-edge cleaning with high coverage significantly reduces workload and labor intensity.

Transportation

Fully Autonomous and Comprehensive: 24/7 automated operation—scrubbing, dust mopping, sweeping, and vacuuming. Edge-to-edge precision cleaning with high coverage, minimizing manual effort.
